AISI 304 Stainless Steel for Components and Equipment


Stainless steel is a versatile material widely used in various industries due to its exceptional properties.

When dealing with water and wastewater, manufacturers need to choose the most suitable stainless-steel type to avoid problems such as corrosion and treatment contamination.


One of the most popular grades of stainless steel is AISI 304, known for its excellent corrosion resistance, durability, and aesthetic appeal.


The hygienic properties of AISI 304 stainless steel are crucial in water and wastewater treatment applications. The material is non-porous, easy to clean, and resistant to bacterial growth, making it suitable for industries where cleanliness and sanitation are paramount.


By reading this article you will learn more about the characteristics, applications, and the reason why AISI 304 stainless steel is used for numerous components and equipment in the water and wastewater industry.



AISI 304 Stainless Steel Article
AISI 304 Stainless Steel


Table of Contents



Stainless steel is a type of steel alloy that contains a minimum of 10.5% chromium, which forms a protective oxide layer on the surface, preventing corrosion and providing enhanced durability. Among the various grades available, AISI 304 stainless steel stands out for its exceptional performance in numerous applications.



AISI 304 stainless steel consists primarily of iron, chromium, and nickel, with small amounts of other elements such as carbon, manganese, and silicon.


The composition of AISI 304 is carefully balanced to achieve specific properties.


It offers excellent mechanical properties, including high tensile strength, good formability, and impressive impact resistance.



The chemical composition of AISI 304 stainless steel plays a crucial role in determining its properties and performance. The composition is carefully balanced to achieve specific characteristics that make this grade of stainless steel highly desirable in various applications.


The primary elements present in AISI 304 stainless steel are:

  • Iron (Fe): Iron is the base metal in stainless steel alloys, providing its structural integrity and mechanical strength.

  • Chromium (Cr): The presence of chromium in AISI 304 stainless steel is essential for its corrosion resistance. Chromium forms a thin, protective oxide layer on the surface of the steel, known as the passive layer, which prevents corrosion and oxidation.

  • Nickel (Ni): Nickel enhances the corrosion resistance of AISI 304 stainless steel, particularly in acidic environments. It also contributes to the material's ductility and toughness.

  • Carbon (C): Carbon is added in small quantities to improve the strength and hardness of AISI 304 stainless steel. However, it should be maintained at low levels to preserve the material's corrosion resistance.

  • Manganese (Mn): Manganese is added to enhance the mechanical properties of AISI 304 stainless steel, including its strength and ductility. It also helps improve the material's workability during fabrication processes.

  • Silicon (Si): Silicon aids in deoxidizing the steel during the manufacturing process. It also contributes to the material's strength and helps prevent the formation of harmful impurities.

  • Phosphorus (P): Phosphorus is typically present in small amounts in AISI 304 stainless steel. It helps improve the material's strength and corrosion resistance.

  • Sulfur (S): Sulfur is also present in small quantities and aids in the machinability of AISI 304 stainless steel. However, excessive sulfur content can negatively impact the material's corrosion resistance.


The specific percentages of these elements in AISI 304 stainless steel may vary slightly depending on the manufacturing process and the standards followed by different producers.

Typical composition of AISI 304 stainless steel is listed in the following table:


Chemical Composition of AISI 304 Stainless Steel
Chemical Composition of AISI 304 Stainless Steel


The physical properties of SS 304 stainless steel (AISI 304) are important considerations when evaluating its suitability for specific applications. These properties describe the behavior of the material under various conditions and provide valuable insights into its performance.


SS 304 stainless steel physical properties are listed in the table below such as density, melting point, specific heat, electrical resistivity, elastic modulus (modulus of elasticity), thermal conductivity, and coefficient of thermal expansion (CTE).


AISI 304 Stainless Steel Physical Properties Table_
AISI 304 Stainless Steel Physical Properties Table_

One of the key advantages of AISI 304 stainless steel is its remarkable corrosion resistance. The high chromium content forms a passive oxide layer that protects the steel from oxidation and corrosion, even in harsh environments. This makes AISI 304 ideal for applications where exposure to moisture, chemicals, or corrosive substances is prevalent.


AISI 304 stainless steel exhibits outstanding strength and durability, making it suitable for various demanding applications. Its high tensile strength allows it to withstand heavy loads and resist deformation, ensuring long-lasting performance. Additionally, AISI 304 has excellent fatigue resistance, enabling it to endure repetitive stress and mechanical strain without compromising its structural integrity.


AISI 304 stainless steel is highly formable, allowing it to be shaped into various components and equipment. It can undergo processes like bending, rolling, and deep drawing without experiencing significant cracking or deformation. Moreover, AISI 304 exhibits excellent weldability, making it easy to join with other stainless steel components or different materials using various welding techniques.



AISI 304 stainless steel offers excellent heat resistance, allowing it to maintain its strength and integrity at high temperatures. It exhibits good thermal conductivity, which helps distribute heat evenly and prevents localized overheating.


These properties make AISI 304 suitable for applications that involve exposure to elevated temperatures, such as industrial ovens, heat exchangers, and automotive components.


AISI 304 stainless steel is known for its excellent heat resistance, making it suitable for applications that involve exposure to high temperatures. The material exhibits several properties that contribute to its ability to withstand elevated temperatures without significant degradation.


In the table below we present the main heat resistance data for AISI 304:


AISI 304 Stainless Steel Maximum Temperature Table_
AISI 304 Stainless Steel Maximum Temperature Table_

At temperatures exceeding 800-900°C (1472-1652°F), AISI 304 stainless steel material can experience a reduction in its mechanical properties and increased susceptibility to oxidation. In such cases, specialized heat-resistant alloys may be more suitable.



AISI 304 stainless steel has several equivalent grades in different international standards. These equivalents provide alternative designations for the same or similar material composition. Some commonly recognized equivalent grades of AISI 304 stainless steel include:


  1. UNS S30400: UNS S30400 is the unified numbering system designation for AISI 304 stainless steel. It is widely used in North America and is essentially the same as AISI 304.

  2. EN 1.4301: EN 1.4301 is the European standard (EN) designation for AISI 304 stainless steel. It is commonly referred to as X5CrNi18-10, indicating the composition of the steel.

  3. JIS SUS 304: JIS SUS 304 is the Japanese Industrial Standard (JIS) designation for AISI 304 stainless steel. It is equivalent to the EN 1.4301 standard.

  4. ASTM A240/A240M: ASTM A240/A240M is the American Society for Testing and Materials (ASTM) specification that covers chromium and chromium-nickel stainless steel plate, sheet, and strip for pressure vessels and general applications. AISI 304 stainless steel corresponds to ASTM A240/A240M Grade 304.

  5. DIN 1.4301: DIN 1.4301 is the German standard (Deutsches Institut für Normung) designation for AISI 304 stainless steel. It is equivalent to the EN 1.4301 and UNS S30400 standards.

  6. BS 304S31: BS 304S31 is the British standard designation for AISI 304 stainless steel. It is widely used in the United Kingdom and is equivalent to the EN 1.4301 standard.

These equivalent grades indicate that AISI 304 stainless steel is recognized and utilized worldwide, ensuring consistency in material specifications and interchangeability in various industries. It is important to consult the specific standard or specification relevant to your application to ensure compatibility and compliance with desired requirements.



AISI 304 stainless steel finds widespread use in several industries due to its versatility and superior properties. Some common applications include:

  1. Food processing equipment: AISI 304 is widely used in the food industry due to its hygienic properties, corrosion resistance, and ease of cleaning.

  2. Architectural structures: The aesthetic appeal of AISI 304 makes it a popular choice for architectural features like handrails, decorative panels, and exterior cladding.

  3. Chemical processing: AISI 304 withstands exposure to corrosive chemicals, making it suitable for tanks, pipelines, and valves in chemical processing plants.

  4. Medical equipment: The biocompatibility and corrosion resistance of AISI 304 make it suitable for medical devices, surgical instruments, and implants.

  5. Automotive components: AISI 304 is used in various automotive applications such as exhaust systems, trim components, and fuel tanks due to its durability and heat resistance.

  6. Water and wastewater treatment: valves, flanges, water pipelines, water purification equipment, boilers, heat exchangers, compressors, evaporators boilers.


In any of these applications, YASA can help you to source the best components and manufacture custom made AISI 304 stainless steel parts.

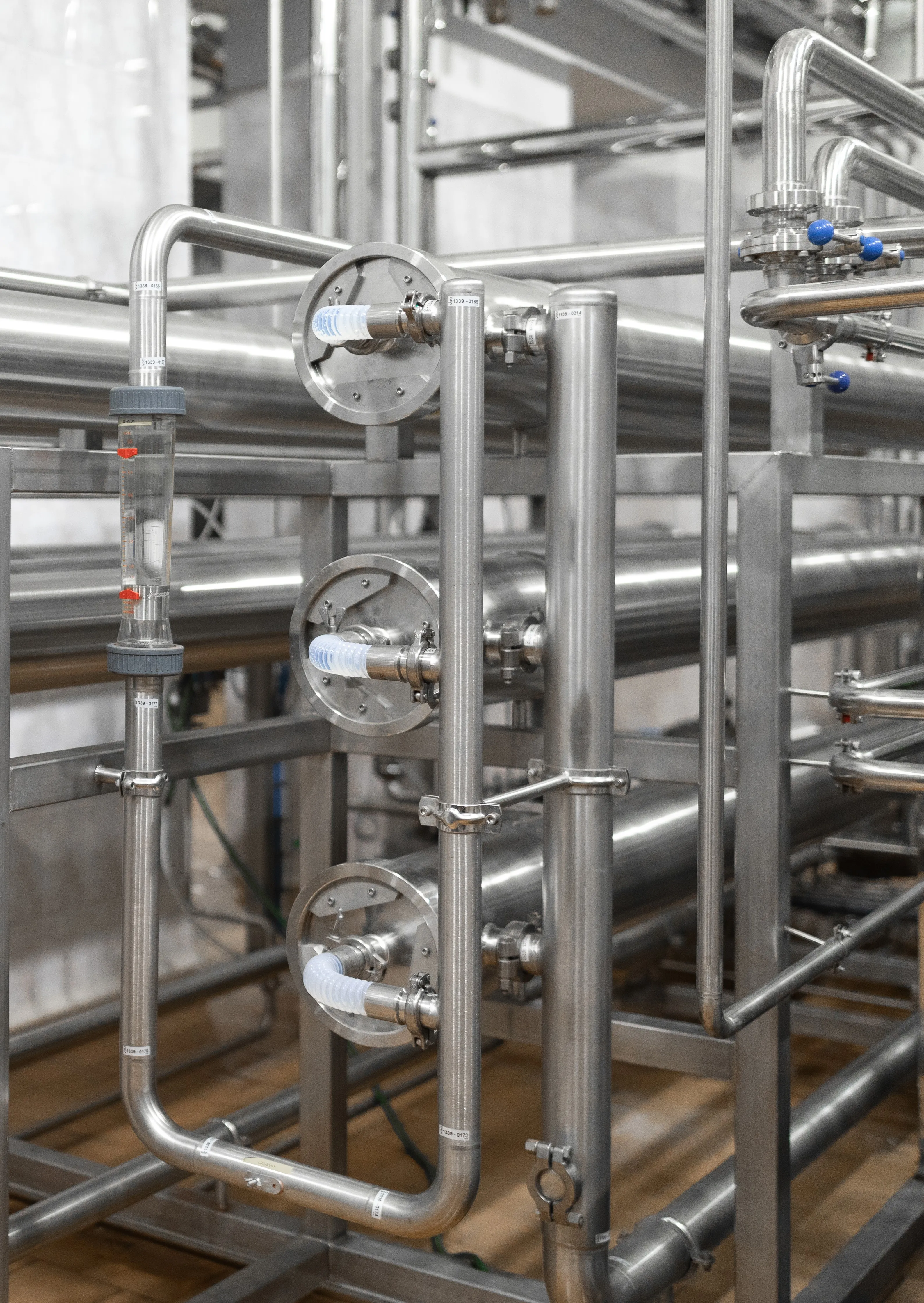

Aisi 304 Stainless Steel Tubing and Piping Components of Equipment
Aisi 304 Stainless Steel Tubing and Piping Components of Equipment

AISI 304 stainless steel is widely used in water and wastewater treatment applications due to its excellent corrosion resistance, durability, and hygienic properties. The material's specific characteristics make it highly suitable for various components and equipment in these industries.


Here are some specific applications where AISI 304 stainless steel excels:

  • Piping and Plumbing: AISI 304 stainless steel pipes and fittings are commonly used in water distribution systems, sewage lines, and plumbing installations. The material's corrosion resistance ensures longevity, preventing leaks, and minimizing maintenance requirements.

  • Tanks and Vessels: AISI 304 stainless steel is frequently employed for the construction of water storage tanks, wastewater treatment tanks, and chemical storage vessels. Its resistance to corrosion from chemicals, including acids and alkalis, makes it an ideal choice for such applications.

  • Filtration Systems: Water and wastewater treatment often involve the use of filtration systems to remove impurities. AISI 304 stainless steel is utilized for filter housings, screens, and cartridges due to its resistance to corrosion and its ability to withstand the mechanical stresses associated with filtration processes.

  • Valves and Fittings: AISI 304 stainless steel valves, pumps, and fittings are utilized in water and wastewater treatment plants. The material's corrosion resistance and longevity ensure reliable operation, even in demanding environments with varying pH levels and chemical concentrations.

  • Heat Exchangers: Heat exchangers are critical components in water and wastewater treatment processes. AISI 304 stainless steel is commonly used in heat exchanger tubes and plates due to its high thermal conductivity, resistance to corrosion, and ease of cleaning.

  • Instrumentation and Control Systems: AISI 304 stainless steel is employed in the construction of sensors, probes, and other instrumentation components used for monitoring and controlling water and wastewater treatment processes. The material's corrosion resistance ensures accurate and reliable measurements.


Unsure about which stainless steel you should use? Get in touch with our team.



AISI 304 Stainless Steel Equipment Components Reverse Osmosis Equipment
AISI 304 Stainless Steel Equipment Components Reverse Osmosis Equipment



The use of AISI 304 stainless steel offers several benefits:

  1. Corrosion resistance: AISI 304 provides exceptional resistance to corrosion, reducing maintenance costs and ensuring longevity.

  2. Aesthetic appeal: The attractive appearance of AISI 304 makes it a preferred choice for applications where visual appeal is important.

  3. Hygiene and cleanliness: AISI 304 is easy to clean and sanitize, making it ideal for industries where cleanliness is crucial, such as food processing and healthcare.

  4. Versatility: AISI 304 can be fabricated and modified to suit various requirements, offering flexibility in design and manufacturing.

  5. Cost-effective: The long lifespan and low maintenance requirements of AISI 304 stainless steel contribute to its cost-effectiveness over time.


To maximize the performance and lifespan of components and equipment made from AISI 304 stainless steel, proper maintenance and care are essential. Regular cleaning using mild detergents and non-abrasive materials will help preserve the material's appearance and corrosion resistance. Avoiding exposure to strong acids or chlorides is also recommended to prevent potential damage.



AISI 304 stainless steel is a highly versatile material renowned for its corrosion resistance, strength, and aesthetic appeal. Its unique combination of properties makes it suitable for a wide range of applications across various industries. Whether in food processing, architecture, chemical processing, medical equipment, or automotive components, AISI 304 delivers exceptional performance and durability.





Q1: Can AISI 304 stainless steel be used in outdoor applications?

A: Yes, AISI 304 stainless steel is suitable for outdoor applications as it possesses excellent corrosion resistance, even in harsh weather conditions.


Q2: Is AISI 304 stainless steel magnetic?

A: No, AISI 304 stainless steel is generally non-magnetic, although it may exhibit weak magnetic properties due to cold working.


Q3: Can AISI 304 stainless steel be hardened through heat treatment?

A: AISI 304 is not heat-treatable for hardening purposes, but it can be hardened through cold working, which increases its strength.


Q4: What is the difference between AISI 304 and AISI 316 stainless steel?

A: AISI 304 and AISI 316 are both stainless steel grades, but AISI 316 offers higher corrosion resistance and is more suitable for marine environments.


Q5: Can AISI 304 stainless steel be recycled?

A: Yes, AISI 304 stainless steel is fully recyclable and contributes to sustainable manufacturing practices.
